AVZ-R10IB3S

Avza Tech panel PCs deliver exceptional computing performance, designed for use in harsh industrial environments.For the traditional industrial panel PC, Avza Tech Products offer NEMA 4/IP65-ratings on the front panel along with optional PCI/PCIe expansion slots, high brightness, wide temperature and DVD/CD drive.With the extensive range of display sizes and designs available, Avza Tech provides you with flawless products that are sturdy,expandable, and easy to manage to help you expand your business rapidly.

Specifications
System Touch Screen(Option)
CPU Intel G2 socket 3rd Core i3/i5/i7 CPU up to i7 3630QM 2.4GHz Touch Type Resistive option
System Chipset Intel HM77 Interface USB
System Memory 2 x DDR3 SO-DIMM slot, up to 16GB 1066/1333 MHz Light transmission(%) 80%
Power Consumption Max:44.2W@12V
Power
External I/O Power input 9~32V DC
USB 4 x USB 2.0 type A
Serial / Parallel 3 x RS-232 DB91 x RS-422/485 selectable default RS-485 DB9 Mechanical
Audio 1 x MIC-in, Line-out phone jack Construction Black steel front bezel, black steel back cover with aluminum heat-sink
Graph 1 x DVI-I IP rating Front IP65
LAN 2 x GbE RJ-45 Mounting Panel mounting

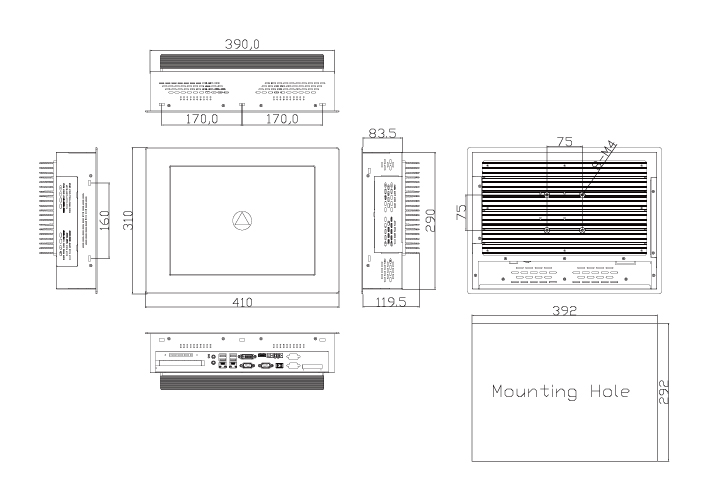

Digitl I/O 1 x 8 pin 6 GPIO/VCC/GND terminal block connector for option Dimension(mm) 410 x 310 x 119.5
KB/MS None Net weight(Kgs) 8.9
Membrane control None
Power 1 x 3pin DC power connector, 1 x Rocker switch for power on/off, 1 x 2pin remote power 1 x 3pin DC power connector, 1 x Rocker switch for power on/off, 1 x 2pin remote power switch, 2 x LED light for power and HDD indication Enviroment
Operating temperature(°C) 0~50
Storage Space Storage temperature(°C) -20~60
HDD 2 x 2.5" SATA2 Storage humidity 10 to 90% @ 40°C, non- condensing
Movable device 1 x External CF slot Certification CE/FCC class A
Operating System Support Microsoft Windows 7 pro for embedded, Windows embedded standard 7, Windows XP Professional, XP embedded
Expansion
On board expansion bus 1 x Mini-PCIe full size
Expansion slot 1 x PCIe x16 slot default, 1 x PCI slot option
Display
LCD Size 15" TFT-LCD
Max. resolution 1024 x 768
Max. color 262K
Luminance(cd/m²) 420
Viewangle(H°/V°) 160/160
Contrast 800:1
Backlight lifetime(hrs) 50000
