AVZ-3795R

AVZA Tech has introduced an all new Panel PC that is both aesthetically beautiful and dust-proof, a flat bezel touch screen Panel PC that applies the latest projected capacitive multi-touch technology, and showcases excellent dust-proofing, providing users with a combination of useful features and a superior design with a new product concept. This fully demonstrates the quality of technical workmanship that Avza Tech applies to stainless steel Panel PC.AVZA TECH is the technology leader in the field of developing stainless steel Panel PCs. With a resolute research, development team and a complete product line, Avza Tech will continue to dedicate efforts to the development of comprehensive products, with an emphasis on quality assurance and complete after sales service. And we will also continue to provide you with solutions that meet harsh demands, as well as stable and high quality products.

Specifications
System   Touch Screen(Option)
CPU Intel socket P Core 2 Duo Processor, support up to P8400 2.26GHz Touch Type Resistive
System Chipset Intel GM45 + ICH9M Interface USB
System Memory 1 x DDR3 SO-DIMM slot, up to 8GB 1066/1333 MHzOnboard 4GB DDR3L 1600MHz Light transmission(%) 80%
    Power
External I/O   Power input 11~32V DC
USB 2 x USB 2.0 type A
Serial / Parallel 1 x RS-232 DB9 1 x RS-232/422/485 selectable default RS-485 DB9 Mechanical
Audio None Construction Satinless steel with aluminum heat sink
Graph None IP rating Full IP65
LAN 1 x GbE RJ-45 Mounting VESA 100 x 100

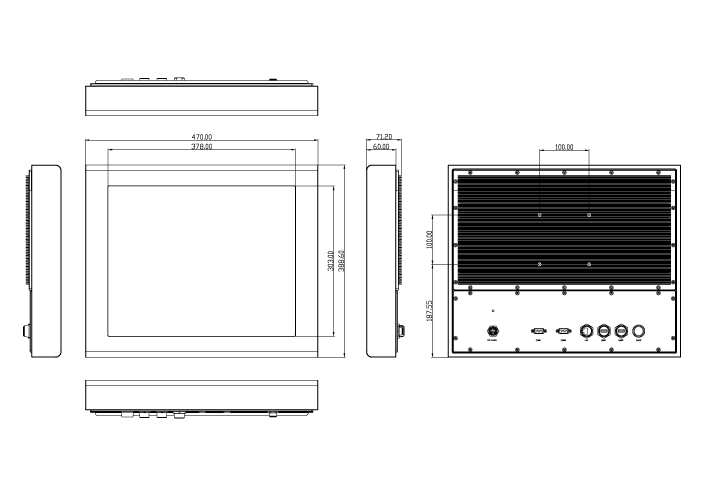

Digitl I/O None Dimension(mm) 470 x 388.6 x 71.2
KB/MS None Net weight(Kgs) 11.5
Membrane control None
Power 1 x 3pin DC power connector Enviroment
    Operating temperature(°C) 0~50
Storage Space   Storage temperature(°C) -30~60
HDD 1 x 2.5" SATA2 Storage humidity 10 to 90% @ 40°C, non- condensing
Movable device 1 x Internal CF slot Certification CE/FCC class A
    Operating System Support Microsoft Windows 7 pro for embedded, Windows embedded standard 7, Windows XP Professional, XP embedded
Expansion
On board expansion bus 1 x Mini-PCIe half size
Expansion slot None

Display
LCD Size 19" TFT-LCD
Max. resolution 1024 x 768
Max. 16.7M
Luminance(cd/m²) 350
Viewangle(H°/V°) 170/160
Contrast 1000:1
Backlight lifetime(hrs) 50000
