AVZ-R15IDS-65EX

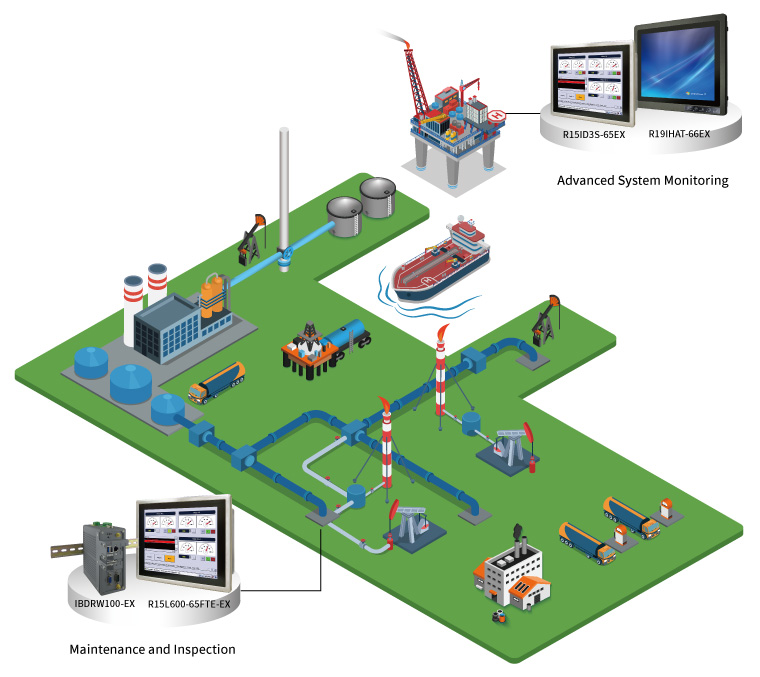

Avza Tech designed our panel pc in response to requests for Panel PC equipment suitable for deployment in certain hazardous locations (HazLoc) where flammable substances may be present. Specifically, our 15" and 19" ATEX and Class 1, Div 2, Groups A-D certified for use in HazLoc environment.
Specifications
| LCD Panel Specification | |
| Panel_Size | 15" |
| Active Display Area | 304.1 (H) x 228.1 (V) |
| Pixel Pitch | 0.297 (H) x 0.297 (V) |
| Panel_Display Resolution | 1024 x 768 |
| Panel_Contrast Ratio | 700:1 (typ.) |
| Display Color | 16.2M (6 bits + FRC) |
| Panel_Brightness | 550 (typ.) |
| Panel_Viewing Angle | -80~80 (H); -70~70 (V) |
| Recommend Resolution | 1024 x 768@60Hz, 75Hz |
| Power Management | VESA DPMS Compliant |
| Plug Play | VESA DDC 1/2B |
| Touch_SensorType | 5-Wire Resistive |
| System Specification | |
| FormFactor | 3.5" |
| Processor Socket | Onboard |
| Processor | Intel® Atom Dual Core N2600 1.6GHz |
| Chipset | Intel® NM10 |
| Memory | 1 x DDR3 SO-DIMM 1333 MHz (default 4GB) |
| BIOS | AMI 16 Mbit Flash |
| VGA Controller | Integrated Graphics |
| LCD Support | 24 bit single-channel LVDS |
| Ethernet | Dual Broadcom BCM57780 GbE controller |
| Audio | Realtek ALC886 HD Audio Codec |
| Serial | 1 x RS-232,1 x RS-232/422/485(inside)* |
| USB | 2 x USB |
| Watchdog Timer | 256 Levels |
| Expansion Slots | 1 x Mini PCI (internal) |
| Storage | mSATA SSD (default 64GB, option up to 128GB) |
| OS | Windows Embedded Standard 7 Windows 7 Pro for Embedded Systems |
| Power Adapter | DC IN 12V |
| Environment | Environment & Dimensions |
| Temperature | Operating: -10°C to +50°C |
| Humidity | 10% to 95% (non-condensing) |
| Cooling | Fanless cooling concept |
| Shock | MIL-STD-810F/G Method 516.6 |
| I/O Connectors | |
| Back Panel I/O Port | 1 x COM1 x LAN2 x USB1 x Power input |
| Standard and Certification | |
| Certification | UL60950-1, CSA C22.2 No. 60950-1-07, EN60950-1, IEC60950-1ATEX zone 2 EX II 3 G Ex ic nA IIC GcUL Class I, Div.2, Groups ABCD T4 ANSI/ISA12.12.01 CAN/CSA C22.2 No. 213-M1987 |
| Note: | All Specifications are subject to change without prior notice!*If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function. |
>
>
>
