AVZA 1943
Avza Tech panel PCs deliver exceptional computing performance, designed for use in harsh industrial environments.For the traditional industrial panel PC, Avza Tech Products offer NEMA 4/IP65-ratings on the front panel along with optional PCI/PCIe expansion slots, high brightness, wide temperature and DVD/CD drive.With the extensive range of display sizes and designs available, Avza Tech provides you with flawless products that are sturdy,expandable, and easy to manage to help you expand your business rapidly.
Specifications
| System | |
| Mainboard | Space for standard Micro-ATX and Mini-ITX main board |
| Processors | Intel / AMD / VIA |
| Memory | Upgradable standard SDRAM / DDR /DDR2 memory |
| HDD | Space for 2.5? x 1 |
| Optical Device | Space for Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD±RW |
| Display | Display Type : 19" SXGA TFT LCDResolution : 1280 x 1024Max.color : 16.7MLuminance : 300 cd/m2View Angel : 178°(H) , 178°(V)Pixel Pitch : 0.294 x 0.294 mmContrast Ratio : 1000 : 1Response Time : 5 msPower Consumption : 23.25 WLCD MTBF : 50,000hrs |
| Expansion Slots | 1 x PCI slot |
| System Fan | 2 x ( 60x60x10mm ) cooling fan |
| Speaker | Built-in 2x stereo speakers(2w) |
| OSD | Brightness, Contrast, H/V Position, Color, Phase, Clock, Management |
| Wireless LAN ( optional ) | usb Interface,Support 64 and 128 bit WEP Encryption*802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)*802.11g:54Mbps up to 50m(Outdoor),20m(Indoor) |
| Touch Screen ( optional ) | Internal USB or RS-232 interface controllerType: Analog resistive type : 25VDC ? 20M?Resolution: continuousLight transmission: 80% or morePower consumption: 5V @1mA Surface hardness : 3HOperating force : ?100gLife expectancy : 1 MillionOperation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux |
| Power Supply | Input: 115~240VAC,50/60HzOutput: ATX 350W with active PFC +5V@ 20 A , +12V@ 16A |
| Construction | Heavy duty steel and aluminum front panel |
| Environment | Operating temperature: 32 °F~113 °F (0 °C to 45 °C)Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)Storage humidity: 10% to 90%non-condensingVibration: 17 to 500HZ 1G PTPShock: 1G /peak( 11m sec) |
| Safety | CE/FCC/Rohs |

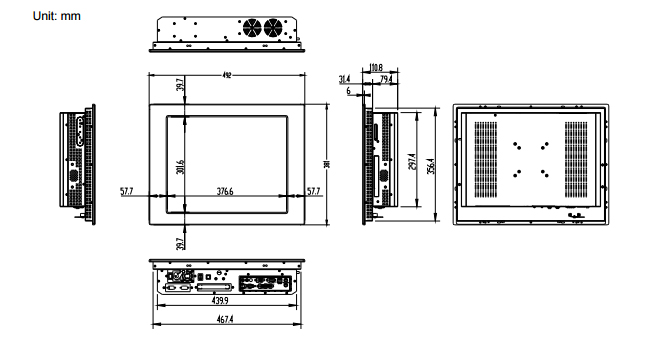

| Dimension W x H x D ( mm ) | With front panel: 492 x 381 x 110.8Without front panel: 486 x 375 x 110.8 |
| Weight ( kgs ) | Net: Gross: |
| Ordering Information | |
| IPPC-1943-350X | 19? Industrial Panel PC Platform , with 350W Power Supply |
| IPPC-1943RTU-350X | 19? Industrial Panel PC Platform with touch screen and USB controller, with 350W Power Supply |
| IPPC-1943RTC-350X | 19? Industrial Panel PC Platform with touch screen and RS-232 controller, with 350W Power Supply |
| OPPC-1943-350X | 19? Open Frame Panel PC Platform , with 350W Power Supply |
| OPPC-1943RTU-350X | 19? Open Frame Panel PC Platform with touch screen and USB controller, with 350W Power Supply |
| OPPC-1943RTC-350X | 19? Open Frame Panel PC Platform with touch screen and RS-232 controller, with 350W PowerSupply |
| AX-150X | 150W ATX Power Supply |
>
>
>
