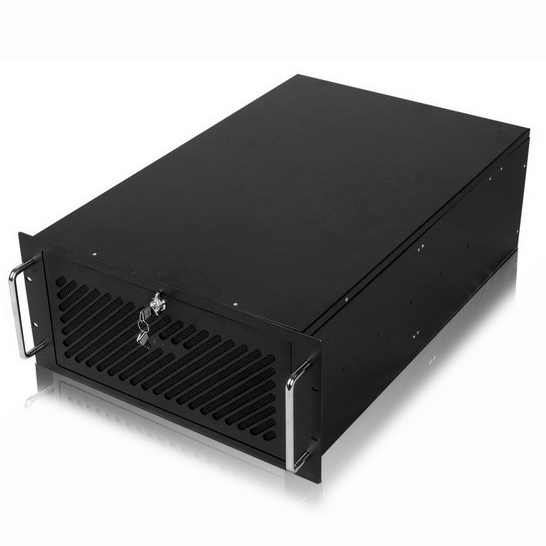

5U Extend
Specifications | |||
Dimension (W*H*D) | 19"*8.75"*26"/ 482*222*660 (mm) | ||
Material Construction | Heavy-duty & Rugged Steel 3.0mm front bezel Hi-end Anti-rusty blue plating | ||
M/B Size | EEB (12"X13") | ||
Expansion | 7 slots rear side / 14 slots rear side | ||
Control & Indicator | 1*Powerswitch+1*Resetswitch+1*Switch(standby) 1*LED (Power)+1*LED (HDD)+1*LED (standby) | ||
Cooling Fans | 3*12cm Fan | ||
DriveBay | 8*5.25 | ||
Power Supply | Standard PS-2 ATX or PS-2 size Mini-Redundant Power supply 300w~500w | ||
Sliding rail | 26" ball bearing sliding rail (option) | ||
Color | Black or Beige | ||
Operation Temperature | Up to 50C (122?) | ||
Operation Humidity (Non-condensing) | Up to 90% | ||
Packing Measurement CBF / CBM | 7.6 / 0.2152 | ||
Packing N.W / G.W | 19.0KGS /22.0KGS |
