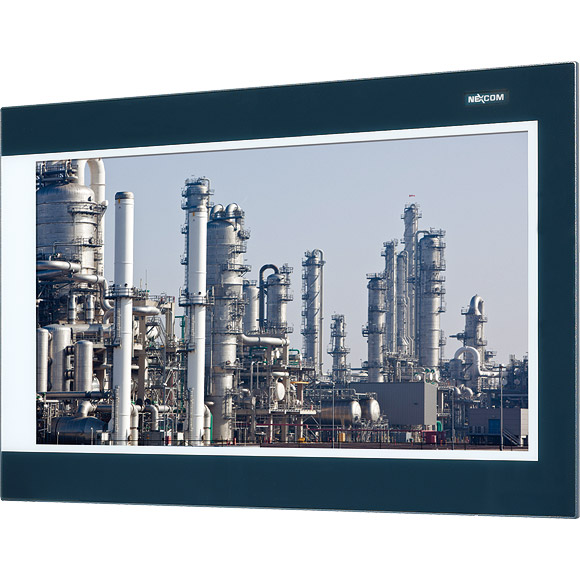

AVZ-2100P

AVZA Tech has introduced an all new Panel PC that is both aesthetically beautiful and dust-proof, a flat bezel touch screen Panel PC that applies the latest projected capacitive multi-touch technology, and showcases excellent dust-proofing, providing users with a combination of useful features and a superior design with a new product concept. This fully demonstrates the quality of technical workmanship that Avza Tech applies to stainless steel Panel PC.AVZA TECH is the technology leader in the field of developing stainless steel Panel PCs. With a resolute research, development team and a complete product line, Avza Tech will continue to dedicate efforts to the development of comprehensive products, with an emphasis on quality assurance and complete after sales service. And we will also continue to provide you with solutions that meet harsh demands, as well as stable and high quality products

Specifications
System
CPU Intel G2 socket 3rd Core i3/i5/i7 CPU up to i7 3630QM 2.4GHz
System Chipset Intel HM77
System Memory 2 x DDR3 SO-DIMM slot, up to 16GB 1066/1333 MHz
Power Consumption Max:44.2W@12V

External I/O
USB 4 x USB 2.0 type A
Serial / Parallel 3 x RS-232 DB91 x RS-422/485 selectable default RS-485 DB9
Audio 1 x MIC-in, Line-out phone jack
Graph 1 x DVI-I
LAN 2 x GbE RJ-45
Digitl I/O 1 x 8 pin 6 GPIO/VCC/GND terminal block connector for option
KB/MS None
Membrane control None
Power 1 x 3pin DC power connector, 1 x Rocker switch for power on/off, 1 x 2pin remote power 1 x 3pin DC power connector, 1 x Rocker switch for power on/off, 1 x 2pin remote power switch, 2 x LED light for power and HDD indication

Storage Space
HDD 2 x 2.5" SATA2
Movable device 1 x External CF slot

Expansion
On board expansion bus 1 x Mini-PCIe full size
Expansion slot 1 x PCIe x16 slot default, 1 x PCI slot option

Display
LCD Size 15" TFT-LCD
Max. resolution 1024 x 768
Max. color 262K
Luminance(cd/m²) 420
Viewangle(H°/V°) 160/160
Contrast 800:1
Backlight lifetime(hrs) 50000
